How it was done
Epoxy floors
01
Task
A gloss, seamless 5 mm epoxy floor for a warehouse.
02
Solution
Priming, scratch coat and two coats of Teping Floor 205 Industrial.
03
Result
The floor takes heavy loads, is easy to clean and lasts.
Warehouses
Open-pit coal mine warehouses
Gloss 5 mm epoxy floor on 1,750 m² of warehouses, done in 23 days.
- Location
- Borodino, Krasnoyarsk Territory, Russia
- Area
- 1,750 m²
- Time on site
- 23 days
- Thickness
- 5 mm

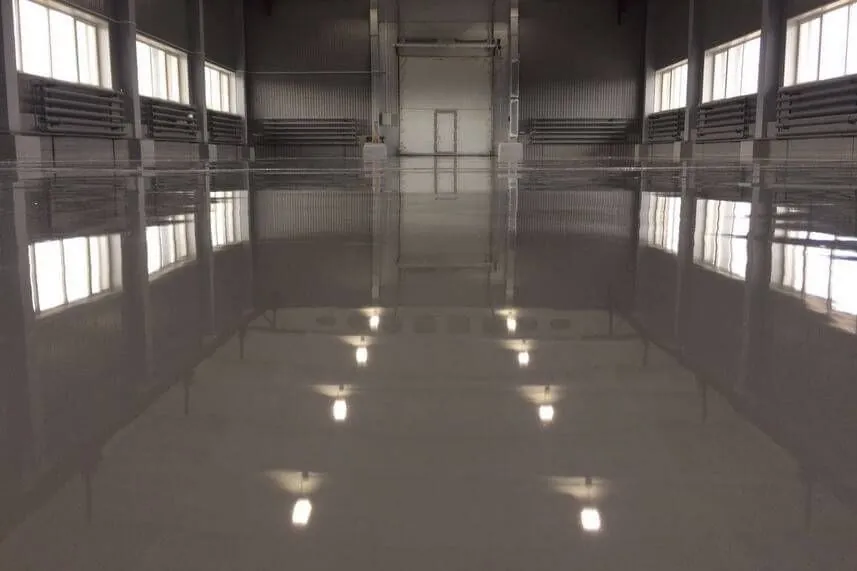

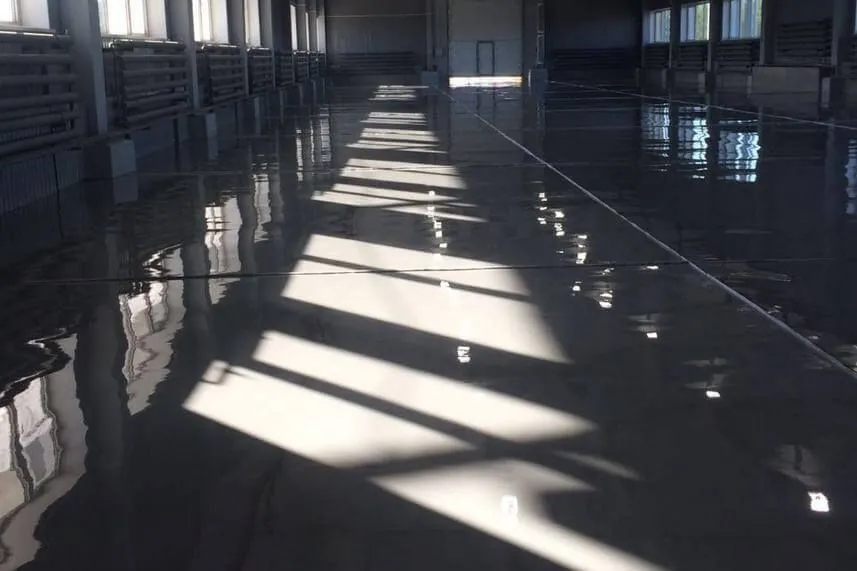

Site photos
How it looks
System on site
Coating layers
Layers and consumption per m² as they were applied on this site.
- 1 PrimingTeping R 1155 Primer 0.28 kg
- 2
Scratch coatTeping Floor 205 Filler
Quartz sand 0.1–0.3 mm 0.32 kg
0.08 kg - 3 Base coatTeping Floor 205 Industrial 4.8 kg
- 4 TopcoatTeping Floor 205 Industrial 3.2 kg
- Total per m²8.68 kg
Order this system
Enter your area and the enquiry will include the system and approximate quantities. A technologist will check the substrate and prepare a calculation.
Estimate based on the consumption on this site. Exact quantities depend on the substrate and are calculated by a TNP technologist.
