How it was done
Epoxy floors
01
Task
A self-levelling floor for a garage.
02
Solution
Teping Floor 205 Industrial epoxy floor over primer and scratch coat.
03
Result
The floor resists petrol and oils and takes wheels, studded tyres included.
Car parks and garages · Homes
Garage in Shushary
3 mm self-levelling epoxy floor on a 160 m² garage.
- Location
- Saint Petersburg, Russia
- Area
- 160 m²
- Time on site
- 6 days
- Thickness
- 3 mm

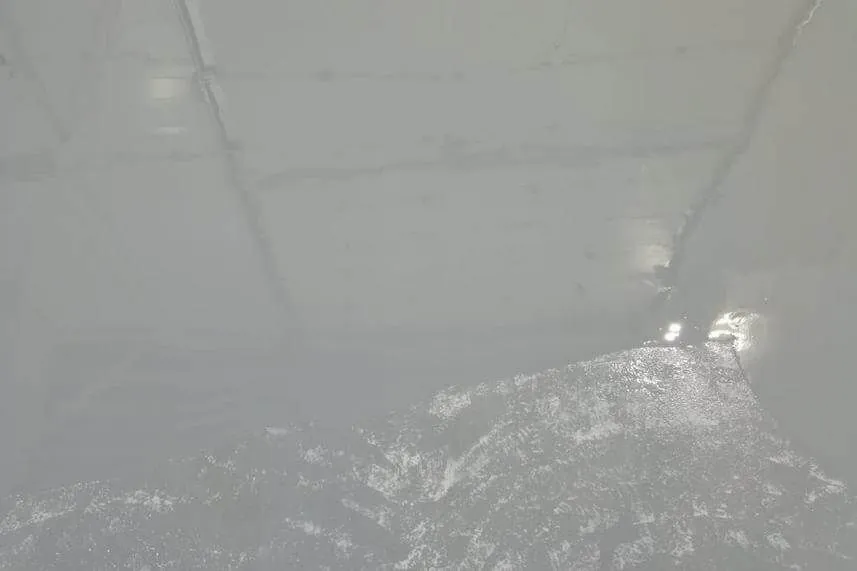

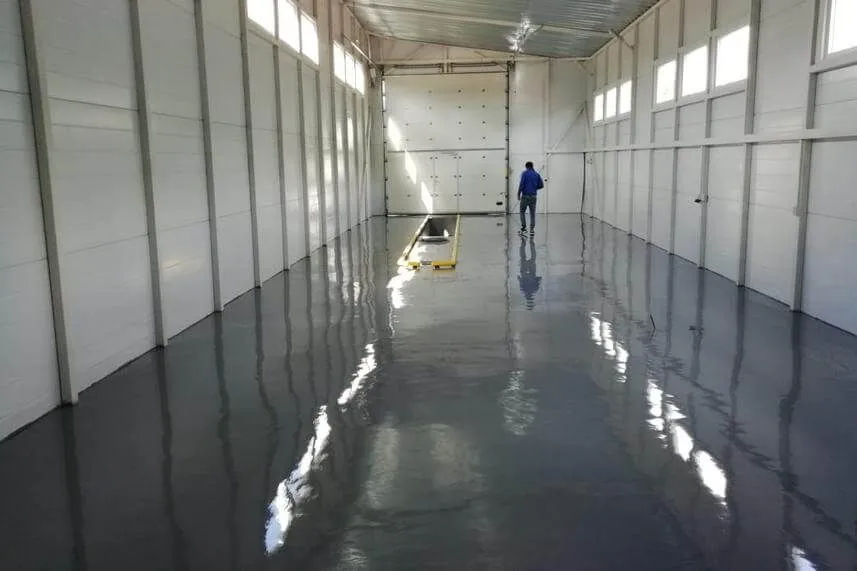

Site photos
How it looks
System on site
Coating layers
Layers and consumption per m² as they were applied on this site.
- 1 PrimingTeping R 1155 Primer 0.28 kg
- 2
Scratch coatTeping Floor 205 Filler
Quartz sand 0.1–0.3 mm 0.32 kg
0.08 kg - 3 TopcoatTeping Floor 205 Industrial 4.8 kg
- Total per m²5.48 kg
Order this system
Enter your area and the enquiry will include the system and approximate quantities. A technologist will check the substrate and prepare a calculation.
Estimate based on the consumption on this site. Exact quantities depend on the substrate and are calculated by a TNP technologist.
Technical solutions album
Similar system
A close system is described in TNP's album: layers, consumption, service conditions and substrate requirements.
1.1Smooth epoxy self-levelling floor, 2 mmA seamless epoxy coating that protects concrete from abrasion, stops dusting and gives the substrate a water-repellent, decorative finish.
2 mmLayers: 3−20 to +60 °COpen the systemProducts on this site
