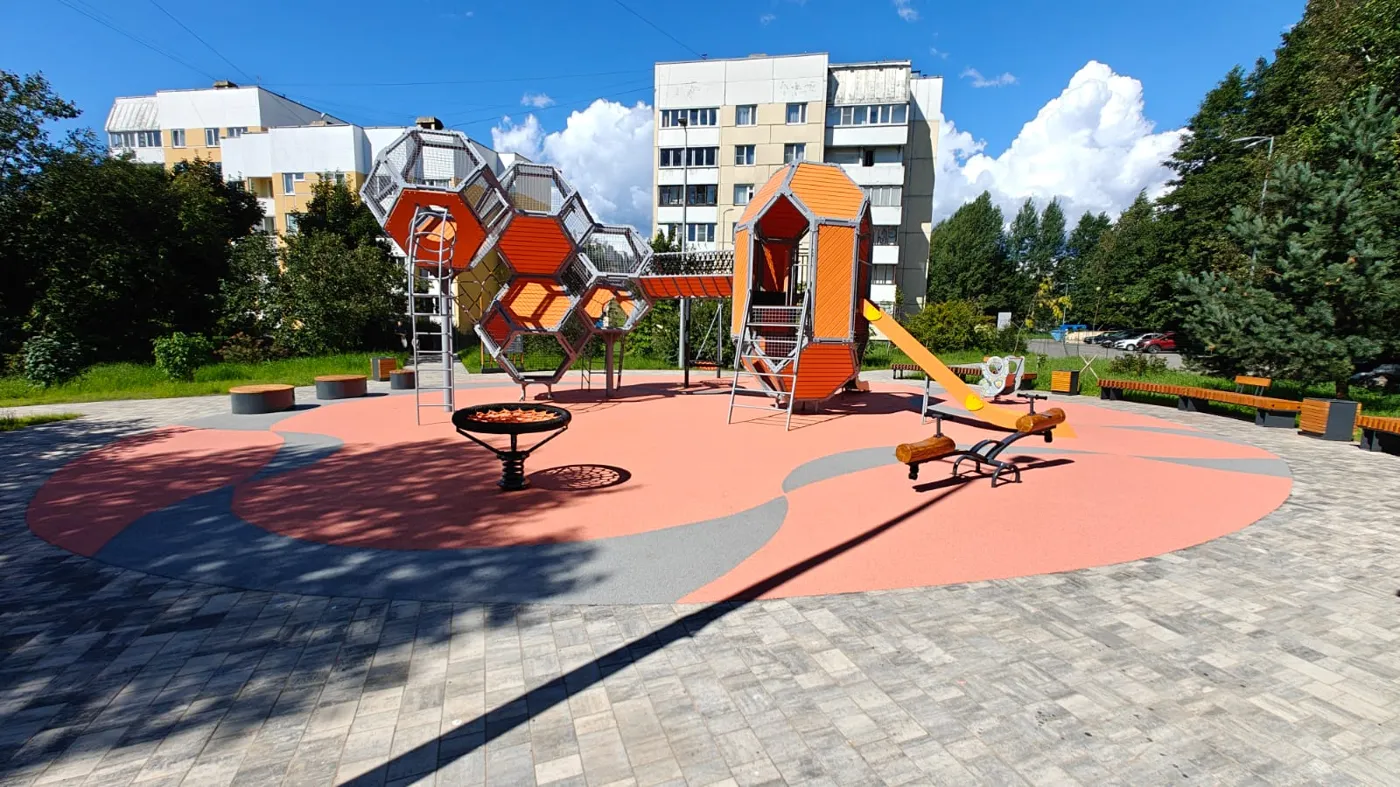

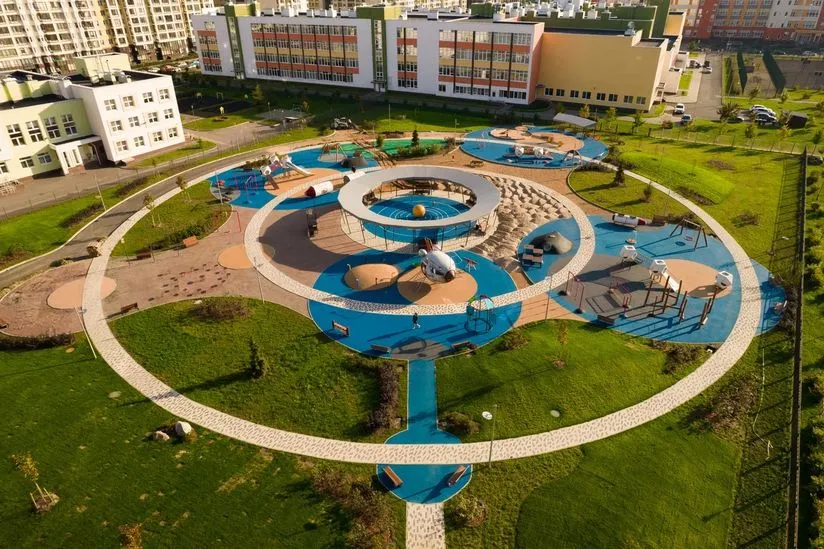

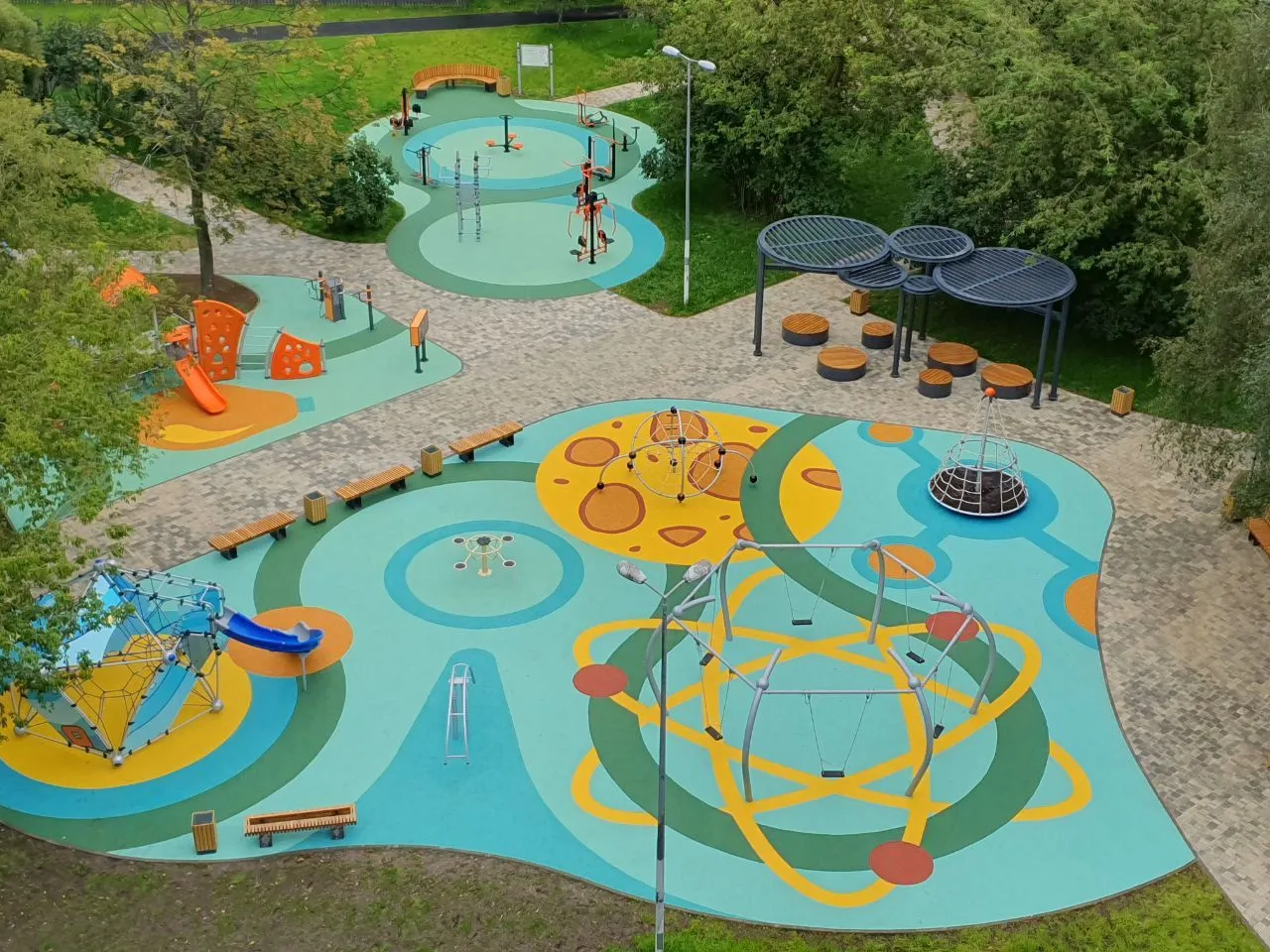

01Playground
A soft seamless surface under swings and slides. Thickness is chosen for the fall height, and EPDM lets you lay patterns.
Suitable
ProjectChildren's playground: 15 mm, 860 m²04 / 07 · Category
Sports surfaces
Indoor and outdoor applications.
Rubber crumb rolls and coloured EPDM surfaces for gyms, sports grounds and playgrounds. Teping Sport Roll comes in black; EPDM versions add coloured granules or are fully coloured.
The basics
What are rubber surfaces
Teping® sports surfaces are made of SBR rubber crumb and EPDM granules with a polyurethane binder.
Seamless surfaces are laid on site over asphalt, concrete or prepared ground: they are resilient, let water through and suit playgrounds and sports grounds.
Sport Roll surfaces are made in the factory and glued to the base in sports halls, and the Sport Roll Base underlay is the base for polyurethane sports surfaces.
PRODUCT LINES
What's in this category
Pick a line to jump straight to its products.
Scenarios
Where it goes
Five typical sites from our projects: which coating suits each one and where it has already been laid.
01
02Street workout and sports ground
A resilient surface under bars and outdoor fitness equipment. It drains water and withstands frost and sun.
Suitable
ProjectOil field sports ground: 15 mm, 840 m²
03Gym
Rolls bonded with adhesive take dropped dumbbells and machine loads and damp noise and vibration.
Suitable
ProjectGym: 6 mm, 240 m²

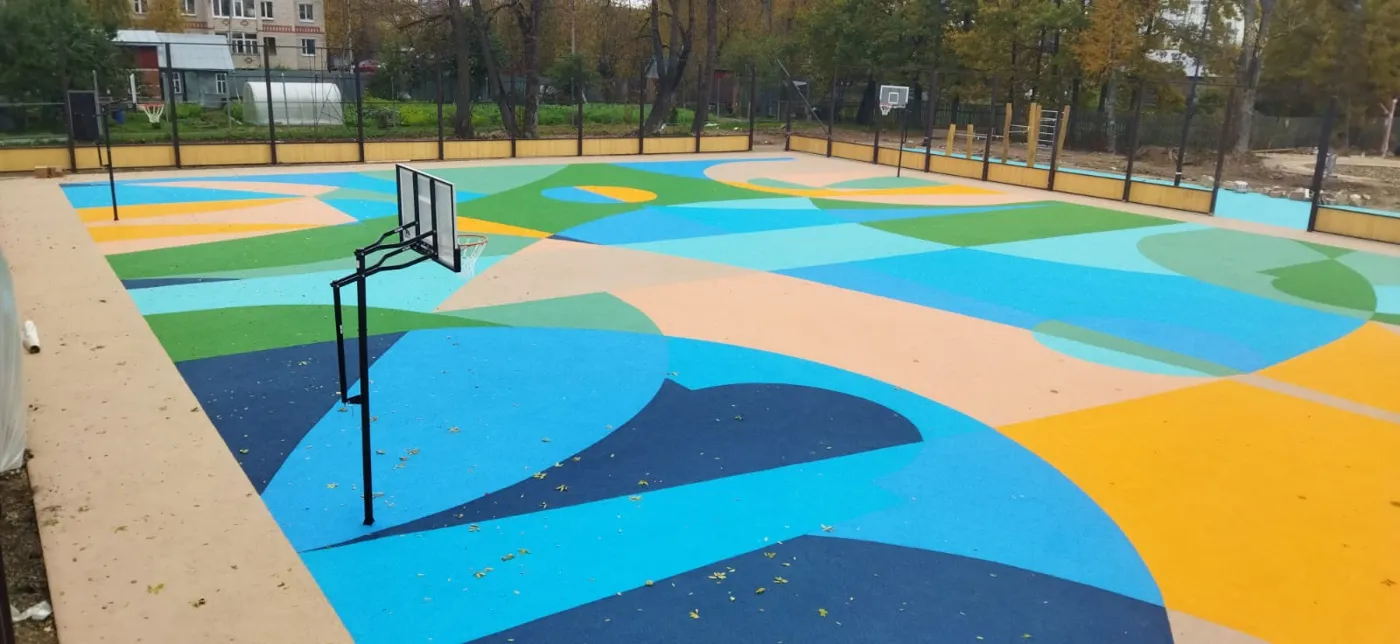

04Court
A level seamless surface for tennis, basketball and five-a-side football, with lines laid in coloured granules.
Suitable
ProjectTennis court: 15 mm, 705 m²
05Track and path
Running tracks, footpaths and cycle lanes of any length. EPDM colours separate lanes and zones.
Suitable
ProjectOlympic Embankment cycle paths: 15 mm, 18,200 m²PRODUCTS
The full range
Every product in this category, grouped by line. The product page has the full description; send an enquiry and we will help you choose a system.
Material
Properties
01
Playgrounds
Cushioning rubber surfaces for children’s playgrounds.
Products: 3
Seamless surface · EPDM
Teping Sport EPDM
Bright seamless surface of synthetic rubber (EPDM) with a polyurethane binder, for playgrounds and sports areas with high aesthetic and environmental demands.
- Bright, saturated colours
- Environmentally safe surface
- Withstands low temperatures
- Adhesion to concrete
- 2.5 MPa
- Drying time
- 24 h
- Ready for use
- 72 h
Used in systems5.2
Seamless surface · Crumb + EPDM
Teping Sport Combi
Two-layer seamless surface: a cushioning base of black rubber crumb with a bright top layer of EPDM granules. A colourful, cost-effective option for playgrounds and sports areas.
- Cushioning base of black rubber crumb
- Bright top layer of EPDM granules
- Withstands low temperatures
- Adhesion to concrete
- 2.5 MPa
- Drying time
- 24 h
- Ready for use
- 72 h
Used in systems5.3
Seamless surface · Rubber crumb

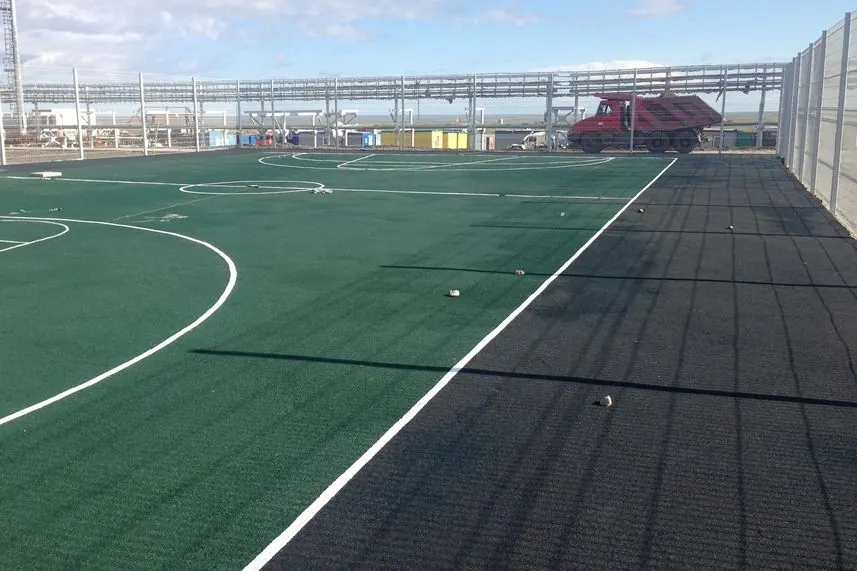

Teping Sport Classic
Reliable, cost-effective seamless surface of rubber crumb and polyurethane binder for outdoor sports areas and playgrounds.
- Drains water well and is easy to clean
- Can be flooded to make an ice rink
- Withstands low temperatures
- Adhesion to concrete
- 2.5 MPa
- Drying time
- 24 h
- Ready for use
- 72 h
Used in systems5.1
02
Outdoor sports
Rubber and polyurethane surfaces for outdoor courts and sports grounds.
Products: 3Also used here: products described above
03
Sports halls
Floors for gyms, fitness centres and weightlifting areas.
Products: 7
Rolls · SBR

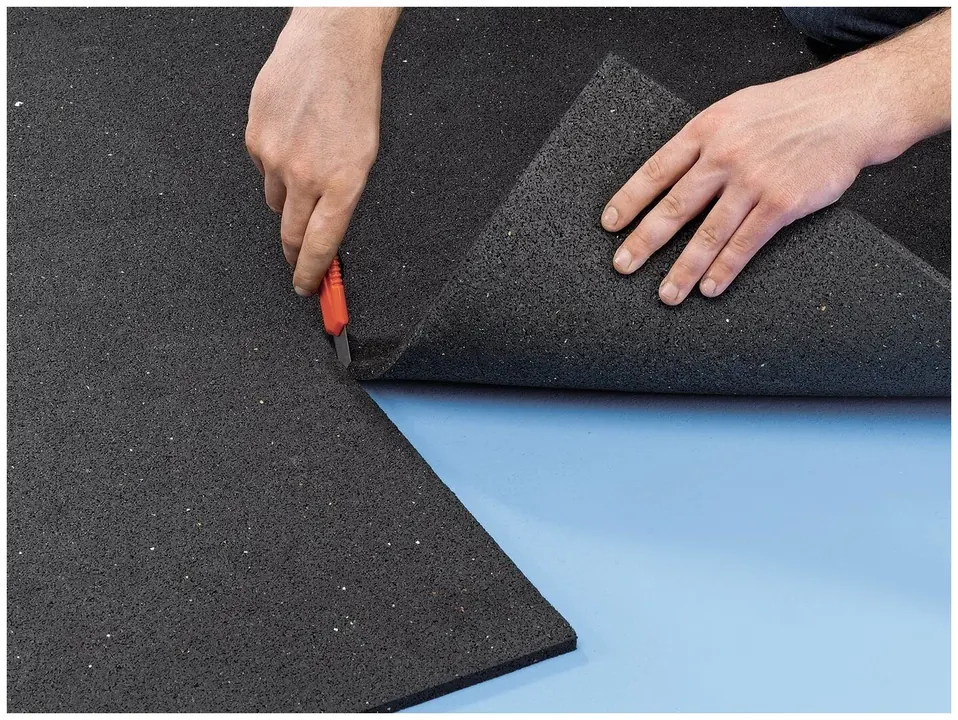

Teping Sport Roll S
Coloured or black rolled surface of SBR rubber crumb and polyurethane binder with a smooth, elastic finish, for areas around ice rinks, changing rooms and ski resorts.
- Smooth, highly elastic surface
- Wide choice of colours and thicknesses
- High impact and wear resistance
- Thickness
- 4 – 12 mm
- Density
- up to 1,250 kg/m³
- Service temperature
- −40 to +110 °C
Rolls · SBR

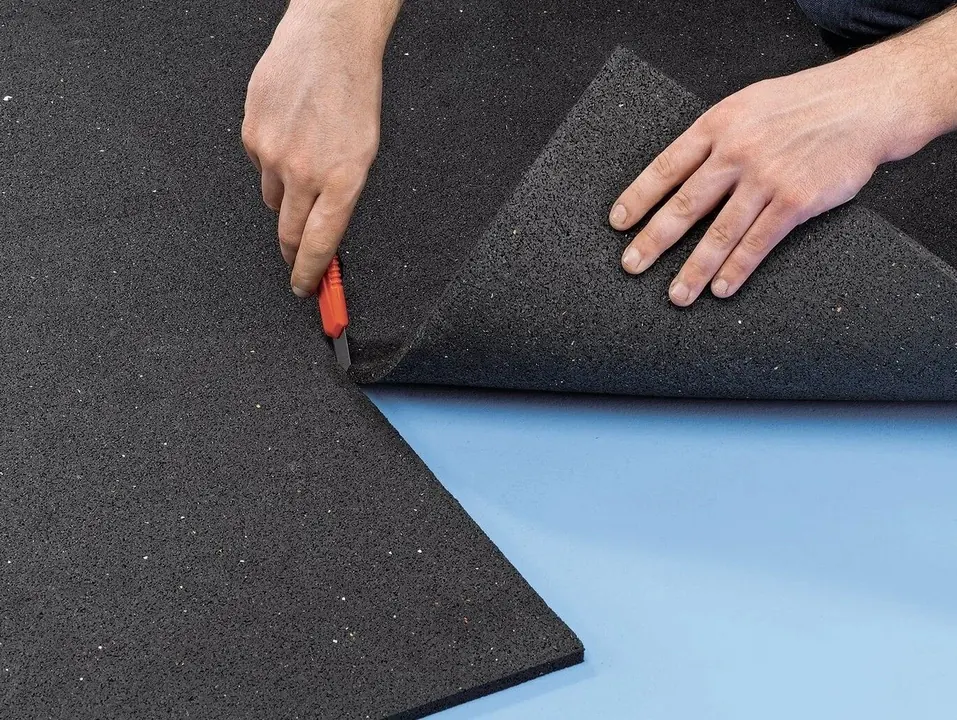

Teping Sport Roll
Black rolled surface of SBR rubber crumb with a polyurethane binder and high wear resistance, for fitness centres, gyms, weightlifting areas and sports halls.
- High impact and wear resistance
- Does not retain water
- For gyms, shooting ranges and changing rooms
- Thickness
- 4 – 12 mm
- Density
- up to 1,000 kg/m³
- Service temperature
- −40 to +110 °C
Underlay · SBR
Teping Sport Roll Base
Elastic rolled underlay of SBR rubber crumb up to 2.5 mm, used to cushion poured floors, artificial turf, laminate, parquet and linoleum.
- Base for polyurethane sports floor systems
- For indoor and outdoor use
- Does not retain water
- Thickness
- 4 – 12 mm
- Density
- up to 850 kg/m³
- Service temperature
- −40 to +110 °C
Used in systems5.4
Rolls · SBR + EPDM

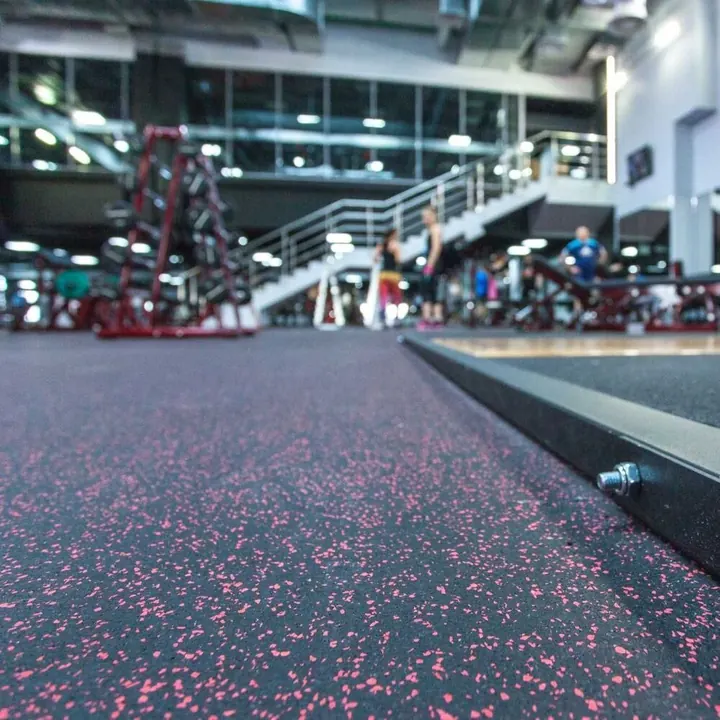

Teping Sport Roll EPDM 15%
Rolled surface of rubber crumb with 15% coloured EPDM granules, offering an attractive look, a wide range of colour options and excellent slip resistance.
- Wide choice of colours and thicknesses
- High impact and wear resistance
- Excellent slip resistance
- Thickness
- 4 – 12 mm
- Density
- up to 1,450 kg/m³
- Service temperature
- −40 to +110 °C
Rolls · EPDM

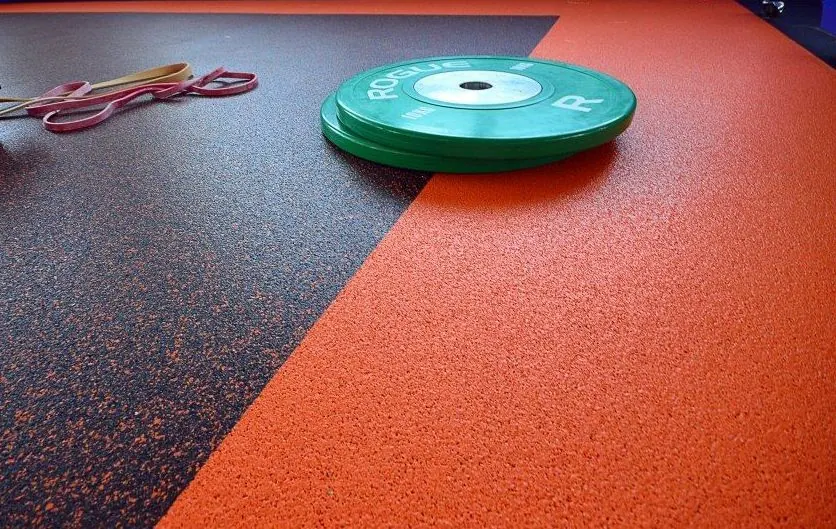

Teping Sport Roll EPDM 100%
Rolled surface of coloured EPDM crumb with high strength and UV resistance, for sports halls, stadiums, fitness centres, offices and outdoor and children's playgrounds.
- Fully coloured EPDM crumb
- Wide choice of colours and thicknesses
- High impact and wear resistance
- Thickness
- 4 – 12 mm
- Density
- up to 1,500 kg/m³
- Service temperature
- −40 to +110 °C
Rolls · SBR + EPDM

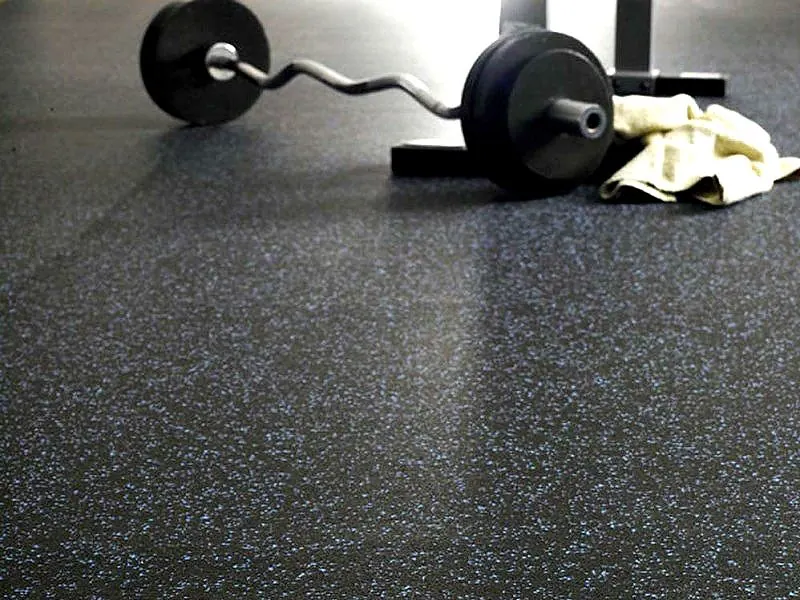

Teping Sport Roll EPDM 30%
Rolled surface of rubber crumb with 30% coloured EPDM granules, offering an attractive look, a wide range of colour options and excellent slip resistance.
- Wide choice of colours and thicknesses
- High impact and wear resistance
- Excellent slip resistance
- Thickness
- 4 – 12 mm
- Density
- up to 1,450 kg/m³
- Service temperature
- −40 to +110 °C
Rolls · SBR + EPDM

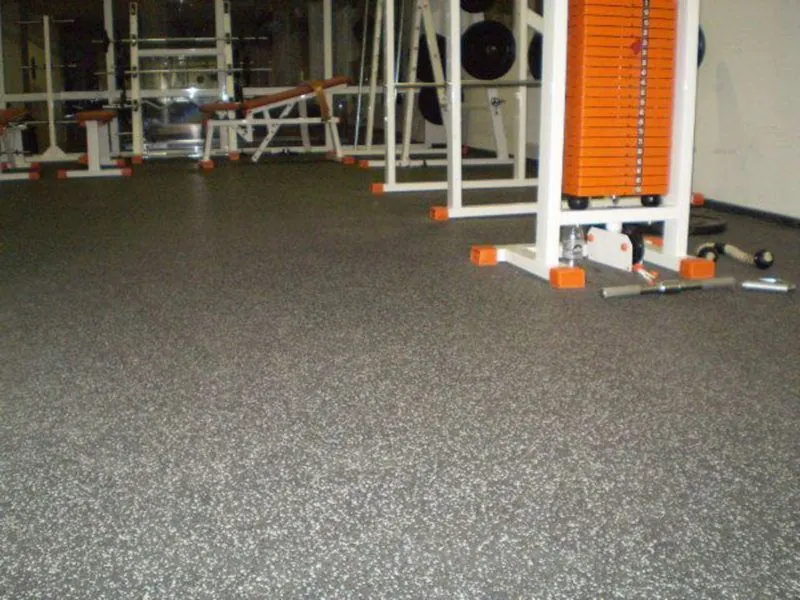

Teping Sport Roll EPDM 50%
Rolled surface of rubber crumb with 50% coloured EPDM granules, offering an attractive look, a wide range of colour options and excellent slip resistance.
- Wide choice of colours and thicknesses
- High impact and wear resistance
- Excellent slip resistance
- Thickness
- 4 – 12 mm
- Density
- up to 1,450 kg/m³
- Service temperature
- −40 to +110 °C
There is no product with this combination. Clear one of the filters or describe the task to us and we will suggest a solution. Find a system
Range
Finished coatings and components
Finished coatings are laid as the wearing course. Components are needed for installation and for coating systems.
Finished coatings
Seamless coatings for outdoor areas and rolls for sports halls.
- Teping Sport EPDMSeamless EPDM surface
- Teping Sport CombiTwo-layer seamless surface
- Teping Sport ClassicSeamless rubber crumb surface
- Teping Sport RollSBR rubber crumb rolls
- Teping Sport Roll SHigh-density SBR rubber rolls
- Teping Sport Roll EPDM 15%Rubber rolls with EPDM granules
- Teping Sport Roll EPDM 30%Rubber rolls with EPDM granules
- Teping Sport Roll EPDM 50%Rubber rolls with EPDM granules
- Teping Sport Roll EPDM 100%Coloured EPDM crumb rolls
Components
Underlay, binder, adhesive and granules.
- Teping Sport Roll BaseUnderlay beneath the poured polyurethane layer of the Sport PU system and beneath rolls
- Teping AD RCPolyurethane binder for rubber and EPDM granules, also used to prime the base
- Teping AD RTTwo-component adhesive for laying rolls
- Coloured EPDM granulesEPDM granules in 40 colours for seamless coatings
Rolls
Roll formats
All seven rolled coatings are made 4, 6, 8, 10 and 12 mm thick. Rolls are cut to order from 3 m long; the maximum length depends on the thickness. Our sales team will confirm the exact length.
| Thickness | Width | Roll length | Roll area, up to |
|---|---|---|---|
| 4 mm | 1,250 mm | 3–20 m | 25 m² |
| 6 mm | 1,250 mm | 3–13 m | 16.25 m² |
| 8 mm | 1,250 mm | 3–10 m | 12.5 m² |
| 10 mm | 1,250 mm | 3–8 m | 10 m² |
| 12 mm | 1,250 mm | 3–6 m | 7.5 m² |
EPDM GRANULES
Colour comes from EPDM
Coloured surfaces use EPDM granules from our partner epdm.ru. The granules keep their colour outdoors and can be laid in patterns and markings.

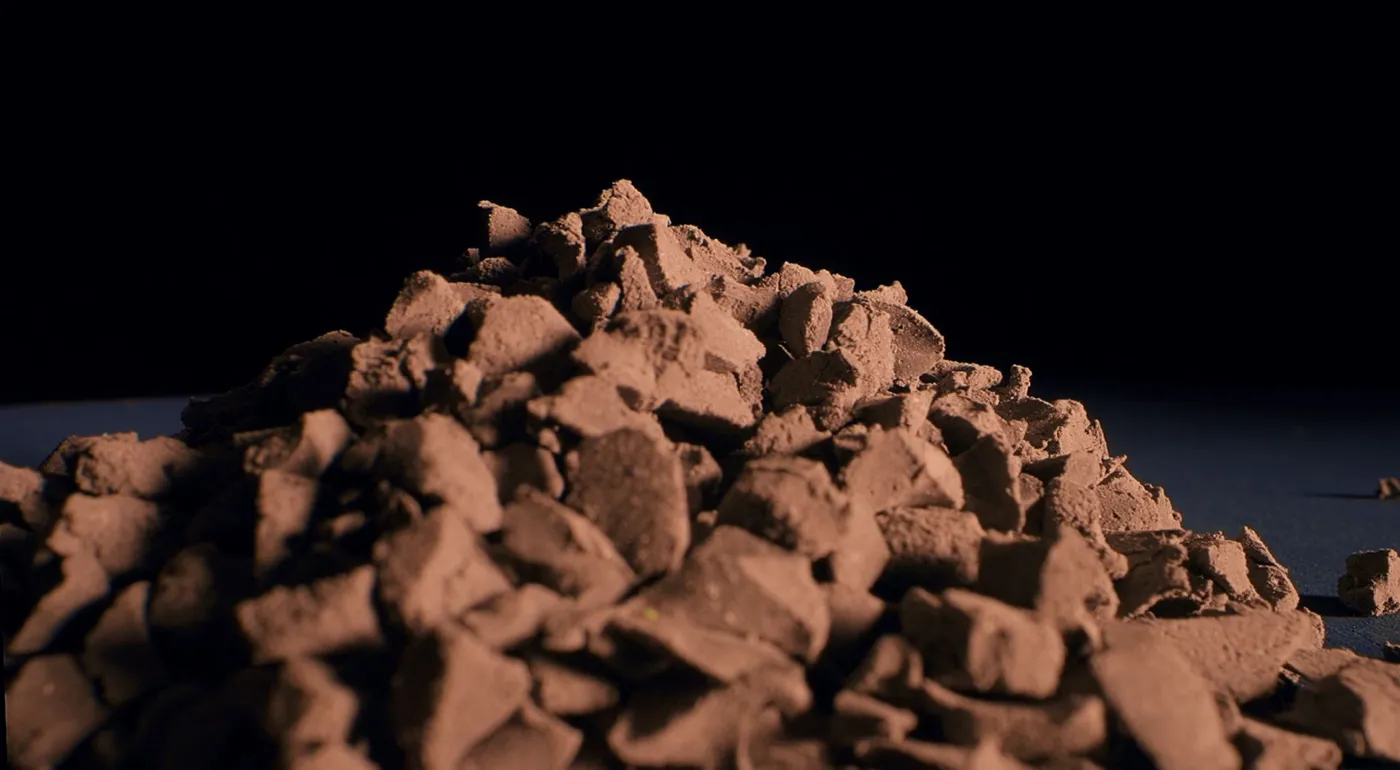

TerracottaS001 · RAL 3016
RedS004 · RAL 3027
Bright greenS005 · RAL 6017
Dark greenS002 · RAL 6000
BlueS007 · RAL 5017
GreyS011 · RAL 7037
GraphiteS018 · RAL 7016
Dark greyS028 · RAL 7012
Eight popular colours. The granule catalogue has 40 colours in all, 20 standard and 20 special; codes follow the epdm.ru catalogue.
Visualiser
Recolour the playground
Pick a zone and an EPDM granule colour to see the combination. We will send samples of the chosen colours on request.
Zone
Colour
Your combination
- Field
- S001 Terracotta
- Track
- S007 Blue
- Play zone
- S005 Bright green
- Lines and accents
- S011 Grey
Surfaces made with EPDM
Projects built with EPDM granules from our partner epdm.ru.
Standards
What the standards test
We choose the thickness and build-up under play equipment by the fall height. Please include it in your enquiry.
EN 1177
Impact attenuation
The surface is tested with a falling headform. It passes when the head injury criterion HIC stays at or below 1000 and the acceleration at or below 200 g. The result is the critical fall height for that thickness and build-up.
EN 1176-1
Where a soft surface is needed
Under equipment with a free height of fall above 0.6 m. The surface's critical fall height must be at least the equipment's fall height, and the impact area must extend at least 1.5 m around it.
EN 14877
Outdoor sports areas
Sets requirements for synthetic surfaces of tracks, courts and multi-sport areas: force reduction, vertical deformation, slip resistance, tensile strength and water permeability.
TU 22.19.73-006-01034840-2021
Teping Sport
Teping Sport coatings are made to TNP's technical specification and hold a voluntary certificate of conformity and a state registration certificate.
Systems
Ready-made systems with these products
Products from this category inside proven systems, from primer to topcoat.
5.1Teping Sport Classic safety surface
from 10 mmLayers: 3−30 to +60 °COpen the system
5.2Teping Sport EPDM safety surface
from 10 mmLayers: 3−30 to +60 °COpen the system
5.3Teping Sport Combi safety surface
12–20 mmLayers: 5−30 to +60 °COpen the system
5.4Teping Sport PU combined surface
thin coatLayers: 6−20 to +60 °COpen the system Guides
Before you choose
Practical guides on choosing, preparing for and installing these products.
07
Rubber crumb and EPDM surfaces for playgrounds and sports groundsTeping Sport Classic, EPDM and Combi compared, the bases they need, consumption per square metre and how they are laid.
4 min readRead the guide 08
Surface thickness for a fall heightHow EN 1176-1 and EN 1177 link the fall height of play equipment to the thickness of a rubber surface, how large the impact area must be and what to send us for a calculation.
3 min readRead the guide 09
EPDM or SBR: which granules to chooseHow black SBR rubber granules differ from coloured EPDM granules, how much of each a square metre needs and which Teping coating to choose for a playground or a sports hall.
2 min readRead the guide APPLICATIONS
Where it's used
Typical projects for this category. Tell us about yours and we will suggest a system.
- 01Gyms and fitness centres
- 02Weightlifting areas
- 03Outdoor sports grounds
- 04Children's playgrounds
FAQ
Answers to common questions
Sport Classic, Sport EPDM or Sport Combi?
Sport Classic of black rubber crumb is the reliable budget option. Sport EPDM gives bright colours and withstands freeze-thaw cycles. Sport Combi combines a black crumb shock pad with a coloured EPDM top: bright and cost-effective.
Can a rubber surface be laid on asphalt or on the ground?
Yes. Asphalt and concrete are cleaned and primed with the binder. A ground base needs a compacted build-up of sand, crushed stone and screenings, good drainage and geotextile under the surface.
When can the playground be opened?
Foot traffic is possible after 24 hours, the surface is fully dry after 72 hours. Vehicles need 3–5 days.
How much binder does rubber crumb need?
Teping AD RC takes 15–25 % of the crumb mass, depending on the crumb size. For 10 mm of rubber crumb surface that is about 7 kg of crumb and 1.6 kg of binder per square metre.
