How it was done
Epoxy floors
01
Task
An acid-resistant floor for a car workshop.
02
Solution
Teping Floor 205 CR acid- and alkali-resistant epoxy floor.
03
Result
The floor resists solvents, acids, salt solutions, petrol and diesel.
Car parks and garages
Car workshop
3 mm acid-resistant epoxy floor on 70 m² of a car workshop.
- Location
- Moscow, Russia
- Area
- 70 m²
- Time on site
- 7 days
- Thickness
- 3 mm

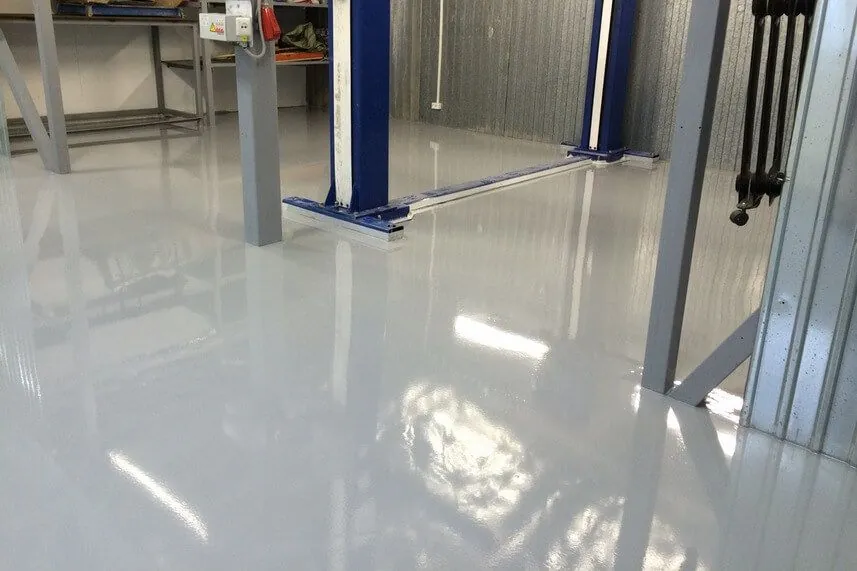

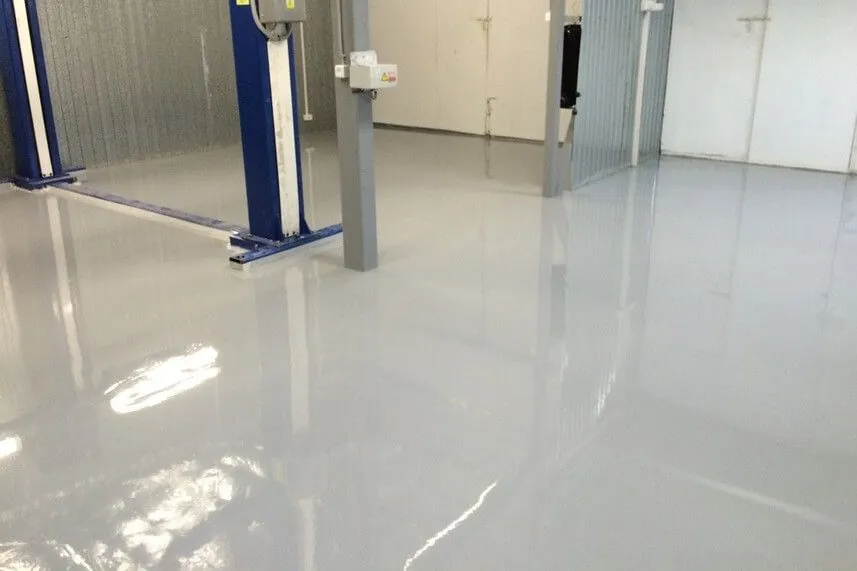

Site photos
How it looks
System on site
Coating layers
Layers and consumption per m² as they were applied on this site.
- 1 PrimingTeping R 1155 Primer 0.28 kg
- 2
Scratch coatTeping Floor 205 Filler
Quartz sand 0.1–0.3 mm 0.32 kg
0.08 kg - 3
TopcoatTeping Floor 205 CR
Quartz sand 0.1–0.3 mm 3.15 kg
0.96 kg - Total per m²4.79 kg
Order this system
Enter your area and the enquiry will include the system and approximate quantities. A technologist will check the substrate and prepare a calculation.
Estimate based on the consumption on this site. Exact quantities depend on the substrate and are calculated by a TNP technologist.
Technical solutions album
Similar system
A close system is described in TNP's album: layers, consumption, service conditions and substrate requirements.
1.4Acid-resistant epoxy self-levelling floor, 2 mmA chemical-resistant epoxy coating for areas exposed to surfactants, acids, alkalis and solvents.
2 mmLayers: 3−20 to +60 °COpen the systemProducts on this site
