How it was done
Epoxy floors
01
Task
A floor with a 3D effect for a bathroom.
02
Solution
Printed vinyl film sealed with clear Teping Floor 205 Clear.
03
Result
The floor is environmentally safe, easy to clean and looks modern.
Homes
3D bathroom floor
3 mm decorative self-levelling floor with a 3D image on 6 m².
- Location
- Saint Petersburg, Russia
- Area
- 6 m²
- Time on site
- 6 days
- Thickness
- 3 mm

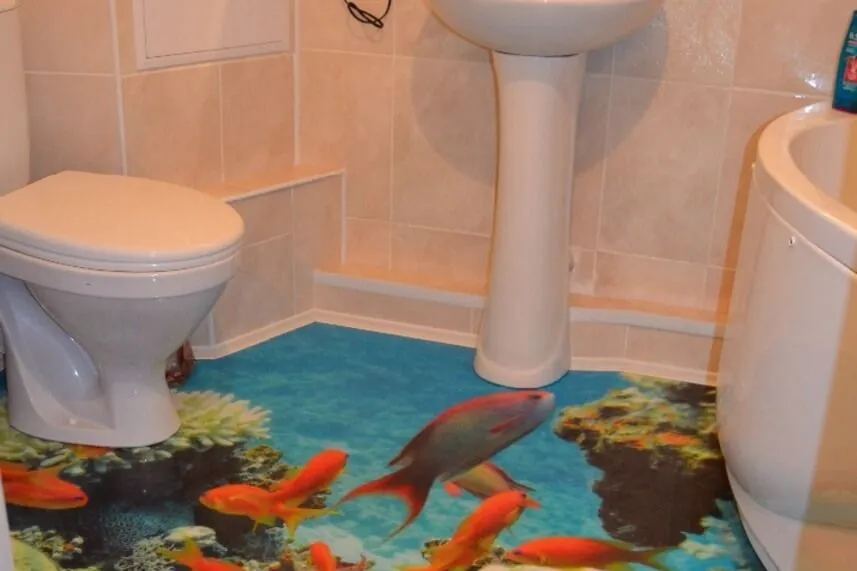

Site photos
How it looks
System on site
Coating layers
Layers and consumption per m² as they were applied on this site.
- 1 PrimingTeping R 1155 Primer 0.28 kg
- 2
Scratch coatTeping Floor 205 Filler
Quartz sand 0.1–0.3 mm 2 kg
0.5 kg - 3 Image layerPrinted vinyl film 1 m²
- 4 TopcoatTeping Floor 205 Clear 3D 2.2 kg
- Total per m²4.98 kg
Order this system
Enter your area and the enquiry will include the system and approximate quantities. A technologist will check the substrate and prepare a calculation.
Estimate based on the consumption on this site. Exact quantities depend on the substrate and are calculated by a TNP technologist.
Technical solutions album
Custom system: it is not in the technical solutions album; the build-up was selected for this site.
