How it was done
Floor paints
01
Task
A paint system for a car park: tyre loads and vehicle fluids.
02
Solution
Chemical-resistant epoxy paint Teping R 1155 over primer.
03
Result
The coating handles the loads, is easy to clean and lasts.
Car parks and garages
Underground car park
Chemical-resistant epoxy paint on 500 m² of underground parking.
- Location
- Saint Petersburg, Russia
- Area
- 500 m²
- Time on site
- 19 days

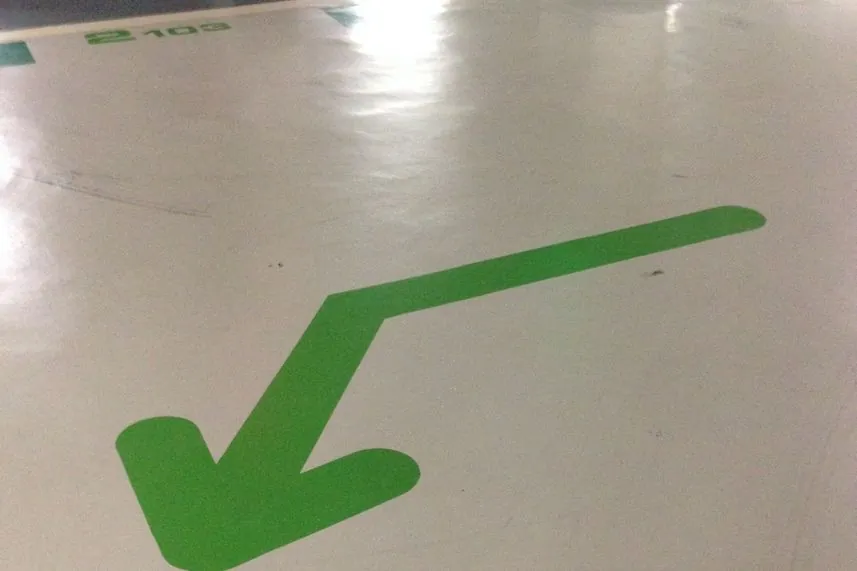

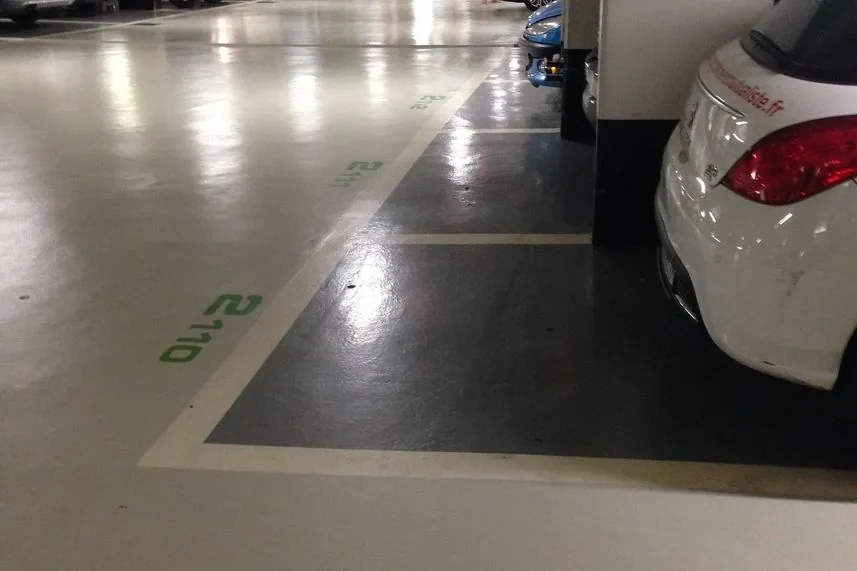

Site photos
How it looks
System on site
Coating layers
Layers and consumption per m² as they were applied on this site.
- 1 PrimingTeping R 1155 Primer 0.28 kg
- 2 Base coatTeping R 1155 0.28 kg
- 3 TopcoatTeping R 1155 0.25 kg
- Total per m²0.81 kg
Order this system
Enter your area and the enquiry will include the system and approximate quantities. A technologist will check the substrate and prepare a calculation.
Estimate based on the consumption on this site. Exact quantities depend on the substrate and are calculated by a TNP technologist.
Technical solutions album
Similar system
A close system is described in TNP's album: layers, consumption, service conditions and substrate requirements.
3.1Three-coat epoxy floor paintA simple, reliable coating up to 300 µm thick that dustproofs and hardens the substrate and makes it chemical- and water-resistant.
up to 0.3 mmLayers: 3−20 to +60 °COpen the systemProducts on this site
