How it was done
Epoxy floors
01
Task
A decorative corridor floor for a TV company, to a designer's brief.
02
Solution
Teping Floor 205 Industrial base in four shades, vinyl film with logos, CDs and a 2 mm clear Teping Floor 205 Clear layer.
Public spaces
TV company 3D floor
Designer corridor floor with logos and CDs on 152 m².
- Location
- Moscow, Russia
- Area
- 152 m²
- Time on site
- 10 days

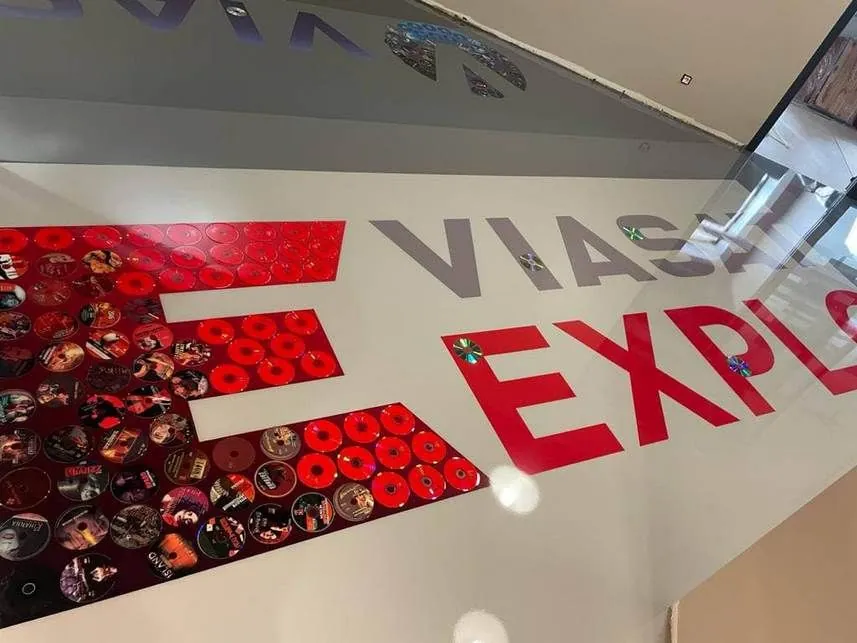

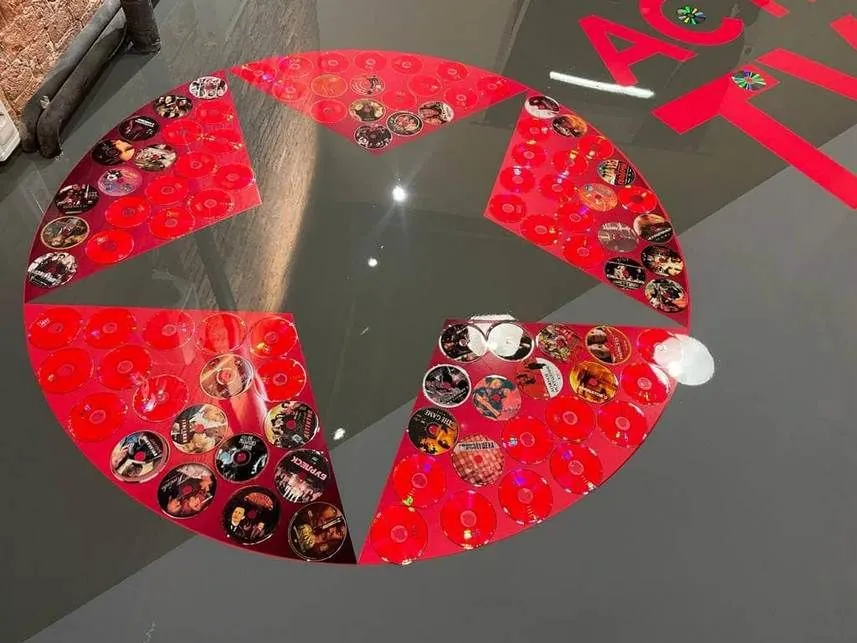

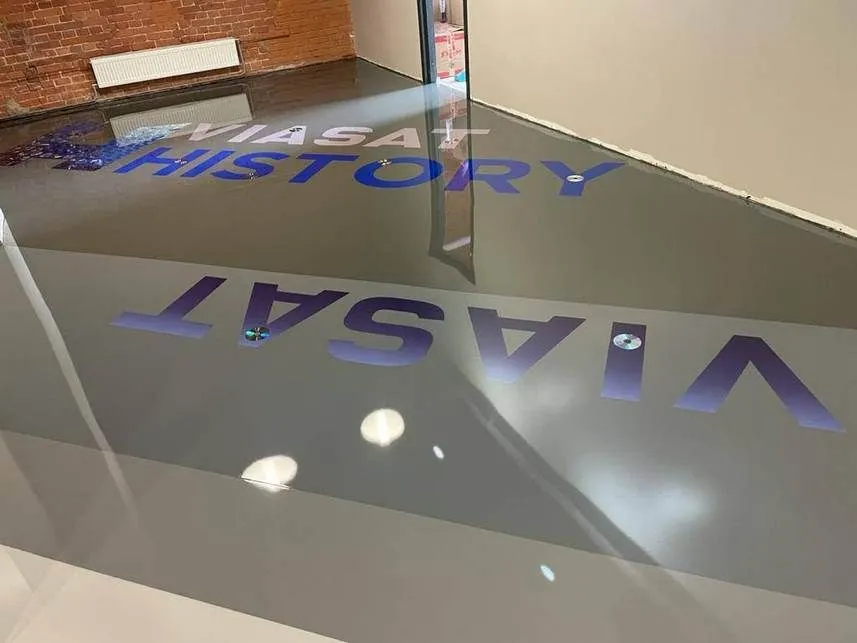

Site photos
How it looks
System on site
Coating layers
Layers and consumption per m² as they were applied on this site.
- 1 PrimingTeping R 1155 Primer 100 0.2 kg
- 2 Scratch coatTeping Floor 205 Filler 0.4 kg
- 3 Base coatTeping Floor 205 Industrial 3 kg
- 4 Image layerPrinted vinyl film 1 m²
- 5 TopcoatTeping Floor 205 Clear 3D 2.2 kg
- Total per m²5.8 kg
Order this system
Enter your area and the enquiry will include the system and approximate quantities. A technologist will check the substrate and prepare a calculation.
Estimate based on the consumption on this site. Exact quantities depend on the substrate and are calculated by a TNP technologist.
Technical solutions album
Custom system: it is not in the technical solutions album; the build-up was selected for this site.
